M/V ST.PAUL BUILT APRIL 1994
SINGLE DECK BULK CARRIER, LIBERIAN FLAG
IMO NO. 9044281; OFFICIAL NO. 12497;
CLASS: HIGHEST RUSSIAN MARITIME REGISTER OF SHIPPING ICE 4
- RMRS - MEMBER OF I.A.C.S., P&I -
CALL SIGN: A8FV3, TLX 463790160, TEL. 764141557, FAX 764141558
GRT/NRT 25,197.00/14,247.00 - INTERNATIONAL
. 25,979.03/23,217.58 -
. 26,495.45/20,021.95 -
DWAT 40,926 MT ON 11.500 M SUMMER SW / DISPLACEMENT 51,043
DWAT 39,773 MT ON 11.261 M WINTER SW / DISPLACEMENT 49,890
DWAT 42,084 MT ON 11.739 M TROPICAL / DISPLACEMENT 52,201
LIGHTSHIP: 10,117 MT; TPC ON SUMMER DRAFT 48.21; F.W.A. 265 MM
CONSTANTS: 350 T EXCL. F.W.
LOA/BEAM: 186.45/30.006 M; LBP: 177.00 M; M.DEPTH: 16.195 M
DISTANCE WATERLINE TO TOP OF HATCHCOAMINGS (METRES):
LIGHT BALLAST: 1/ 12.40; 2/ 12.00; 3/ 11.80; 4/ 11.50; 5/ 11.30
HEAVY BALLAST: 1/ 10.80; 2/ 10.20; 3/ 10.00; 4/ 9.40; 5/ 9.20
HEIGHT FROM KEEL TO HIGHEST FIXED POINT: 47.60 M
HEIGHT FROM KEEL TO TOP OF HATCHCOAMING: 19.00 M
AIRDRAFT - WL (SUMMER) TO HIGHEST POINT: 36.10 M
CAPACITIES: IFO 1,585 MT, MDO 170 MT, FW 487.6 MT
CARGO GEAR AND GRABS:
4 SETS HAGLUNDS SWL 30 MT SERVING ALL HOLDS
(3.4 M - 24 M (MIN-MAX) RADIUS, MAX OUTREACH 9.00 M
HOISTING SPEED OF CRANES ABT 30M/MIN.
4 PS 12 CB.M.MECANICAL CLAMSHELL TOUCHDOWN GRAB (CAPACITY 12/10/8/6 M3
BY KICK OUT PLATE) TARE 6500KG SWL 18 MT
HOLDWISE GRAIN/BALE CAPACITY
. GRAIN M3 BALE M3 GRAIN CU.FT
NO.1 9,548 9,300 337,188
NO.2 10,751 10,440 379,672
NO.3 10,732 10,440 379,001
NO.4 10,789 10,440 381,014
NO.5 10,636 10,100 375,610
TTL 52,456 50,720 1,852,484
5 HO/HA
HATCH COVERS: MCGREGOR STEEL HYDRAULIC FOLDING TYPE
HATCH SIZES NO.1 : 19.72 X 15.36 NO 2-5: 19.89 X 15.36 M
PERMISSIBLE DECK LOADING
TANK TOP 19.00 MT/M2 HATCH COVERS 1.75 MT/M2
MAIN DECK 2.00 MT/M2
INTERNAL DIMENSIONS OF HOLDS
FLAT FLOOR DIMENSIONS + HEIGHT TO MAIN DECK
LENGTH WIDTH HEIGHT
NO.1 26.0 6.0/21.8 14.4
NO.2 25.2 21.8 14.4
NO.3 25.2 21.8 14.4
NO.4 25.2 21.8 14.4
NO.5 27.2 21.8/15.4 14.4
CO2 FITTED; AUSTRALIAN HOLD LADDERS FITTED
HOLDS ELECTRICALLY VENTILATED 5 AIR CHANGES/HOUR
MACHINERY
MAIN ENGINE: B & W 6L60 MCE 11340 B.H.P. AT 117 RPM
FW EVAPORATOR 25T/DAY

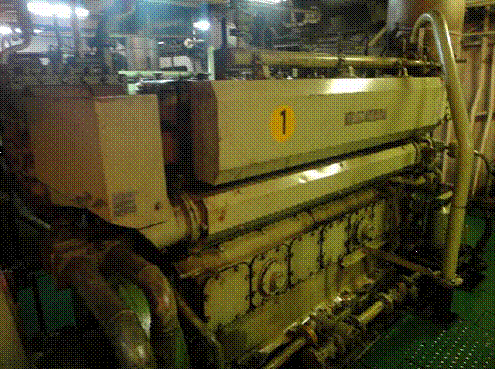

GENERATORS 3 X YANMAR 520KW
BASIS GOOD WEATHER CONDITIONS UPTO AND INCL BEAUFORT FORCE 4 DOUGLAS
SEA STATE 3 (IFO GRADE MAXIMUM 180 CST GRADE RME180
(ISO 8217:2010(E) RME180) AND MARINE DIESEL OIL WITHIN ISO 8217:2010(E)
DESIGNATION ISO-F-DMB)
ABOUT 13.0 KNOTS ON ABOUT 23.0 MT IFO (RME 25) LADEN
ABOUT 13.5 KNOTS ON ABOUT 23.0 MT IFO (RME 25) BALLAST
PLUS ABOUT 2.2 MT MDO (DMB) IN PORT IDLE / AT SEA.
IN PORT: 2.2MT MDO (DMB) IDLE / 4MT MDO (DMB) WORKING
VESSEL BURNS MDO WHEN MANOEUVERING IN PORTS, NAVIGATING IN RIVERS,
CHANNELS, CANALS, ESTUARIES, NARROW AND CONFINED WATERS ETC.
ALL DETAILS "ABOUT" W.O.G.
Please see photo report below:
